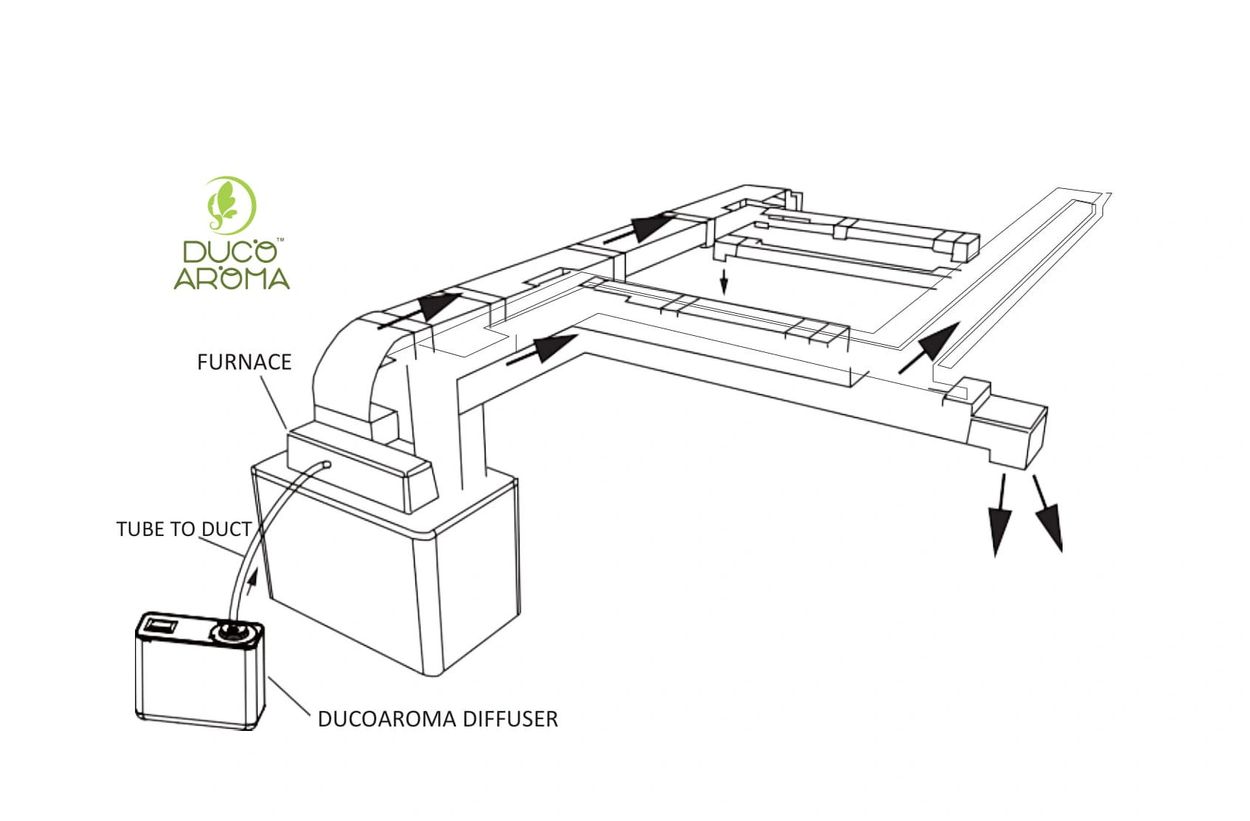

HVAC INSTALLATION DIAGRAM

• Step 1: In your furnace room there are always  2 ducts one is called Air Supply and the other Return Air. You want to locate the Air Supply which is the one circulating the Hot & Cold Air into the house through the registers. It is usually the Duct on top of the furnace that connects to all the registers in the House.
• Step 2: After Locating the Air Supply Duct, look for a appropriate place where you want to install the Scent Machine, preferably do not connect too close to the furnace, approximately connect  2 feet (61 CM) above the furnace or the length of the tube that comes with the machine, if that's where you are going to install the scent machine, if you have space you can always connect further away from furnace as long as the tube stays straight with not more than 15 degrees bend.
• Step 3: Always make sure the machine is placed on a flat surface or installed on the wall. Once you know where you are installing the machine, use the tube that comes with the machine and  make small hole with a drill into the Air Supply Duct, put one end of the tube inside the duct and the other end connects to the machine nozzle, nozzle comes in the bag which you will need to screw into the machine.
• Step 4: Use the key that comes in the box and unlock the bottle and remove the empty bottle, unscrew the bottle from the atomizer top, pour the Essential Oil into the bottle, screw back the atomizer and place it back and lock.
• Step 5: Plug in the machine, the machine will turn on and it will be working with it's factory default setting. To adjust setting, clock and connect the unit to WIFI please refer to user manual that comes with the machine, or click the following link for user manual online:
